A/F Sensor 1 Bank 1 The Engines Breath Guardian

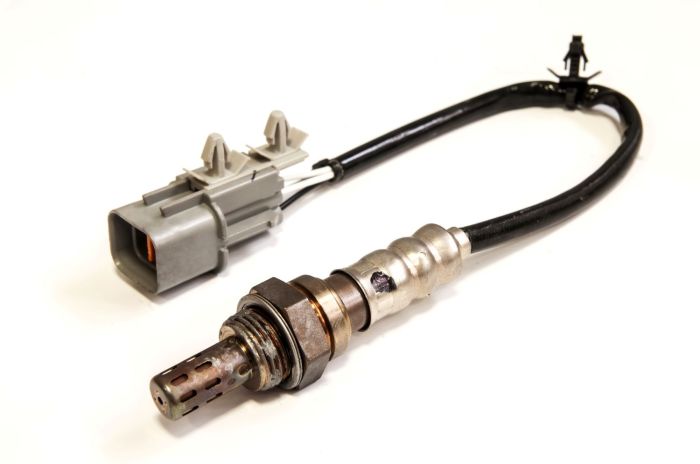

A/F Sensor 1 Bank 1 stands as a silent sentinel, a vital component in the intricate dance of an internal combustion engine. Its unwavering vigil over the air-fuel mixture is the key to unlocking peak performance and environmental harmony. Prepare to journey into the heart of this essential sensor, where understanding its role illuminates the path to a more efficient and responsive ride.

This critical sensor, known as the Air/Fuel Ratio (A/F) Sensor 1 Bank 1, plays a foundational role in modern vehicle operation. It resides within the exhaust system, specifically positioned as ‘Sensor 1’ to provide the initial, crucial data about the combustion process. In engines with multiple banks of cylinders, ‘Bank 1’ refers to the side that contains cylinder number one, making this sensor’s location highly specific and its readings paramount for the engine’s precise calibration.

Internally, it’s a marvel of engineering, designed to measure the oxygen content in the exhaust gases and translate that into a vital signal for the Engine Control Unit (ECU), dictating the perfect balance of air and fuel for optimal combustion.

Understanding the ‘A/F Sensor 1 Bank 1’ Component

Alright, so we’re diving into the nitty-gritty of your engine’s exhaust system, specifically the bit that keeps everything running sweet. Think of the A/F sensor as the engine’s taste buds, constantly checking if it’s getting the right mix of fuel and air. Get this wrong, and your car can be a proper mess, chucking out fumes like a dragon and guzzling petrol like it’s going out of fashion.This sensor is absolutely crucial for your engine to perform at its best.

It’s all about making sure the combustion process is efficient, which means better fuel economy, lower emissions, and a smoother ride. Without it doing its job, your engine control unit (ECU) would be flying blind, and that’s never a good look.

Fundamental Function of an Air/Fuel Ratio (A/F) Sensor

Basically, an A/F sensor, also known as a wideband oxygen sensor, is designed to measure the exact amount of oxygen present in the exhaust gases. This isn’t just a rough guess; it’s a precise measurement that tells the ECU whether the air-fuel mixture being burned in the engine is too rich (too much fuel, not enough air) or too lean (too much air, not enough fuel).

Getting this ratio spot-on, ideally around 14.7 parts air to 1 part fuel (the stoichiometric ratio), is key for optimal combustion.

Specific Role of ‘Sensor 1’ in the Exhaust System

When you see ‘Sensor 1’, it’s a dead giveaway that we’re talking about the sensor positioned

before* the catalytic converter. This is its primary gig

it’s the first line of defence, providing the ECU with real-time data about the air-fuel mixture as it exits the engine cylinders but before it’s processed by the catalytic converter. This means it’s the primary sensor responsible for making immediate adjustments to the fuel injection.

Significance of ‘Bank 1’ in Multi-Bank Engine Configurations

In engines that have more than one bank of cylinders, like V6s, V8s, or even flat-sixes, ‘Bank 1’ refers to the cylinder bank that contains cylinder number 1. Engines are often split into banks because of their V or boxer configuration. So, if your car has a V6, it has two banks of cylinders. ‘Bank 1’ will have cylinder 1, and ‘Bank 2’ will have the other cylinders.

Understanding the A/F sensor 1 bank 1 is crucial for engine performance. Just as understanding financial institutions and their roles is important, like knowing can bank do notary , this knowledge helps in managing tasks. Similarly, a properly functioning A/F sensor 1 bank 1 ensures the air-fuel mixture is correct for optimal combustion.

The A/F sensor 1 on Bank 1 is therefore monitoring the exhaust from that specific set of cylinders.

Typical Internal Components and Operating Principles

A wideband A/F sensor is a bit of a sophisticated bit of kit. Internally, it’s usually a multi-layered ceramic element, often made of Zirconia. This element has two key parts: a Nernst cell and a diffusion gap with a pump cell.Here’s a breakdown:

• Zirconia Ceramic Element: This material becomes an electrolyte at high temperatures, allowing oxygen ions to pass through.
• Nernst Cell: This part compares the oxygen concentration in the exhaust gas to the oxygen in the ambient air. It generates a voltage based on this difference, giving a general idea of the air-fuel ratio.
• Pump Cell: This is where the “wideband” magic happens. It actively pumps oxygen ions into or out of a diffusion gap between the sensor and the exhaust gas. By controlling the amount of current needed to maintain a specific oxygen concentration in the diffusion gap, the sensor can precisely determine the air-fuel ratio.
• Heater Element: Since these sensors need to operate at high temperatures (around 600-800°C) to function correctly, a built-in heater quickly brings the sensor up to operating temperature when the engine starts.

The operating principle relies on electrochemical reactions. At high temperatures, the Zirconia ceramic conducts oxygen ions. The sensor essentially tries to maintain a specific, constant oxygen concentration in a small chamber. The amount of electrical current required by the pump cell to achieve this is directly proportional to the air-fuel ratio of the exhaust gases.

Measurement and Interpretation by the Engine Control Unit (ECU)

The A/F sensor doesn’t just spit out a simple “rich” or “lean” signal like older narrowband sensors. Instead, it outputs a variable electrical current that the ECU interprets. This current is directly proportional to the air-fuel ratio.The ECU uses this information in a few key ways:

• Closed-Loop Operation: The ECU constantly monitors the A/F sensor’s output during normal driving. It uses this data to make tiny, rapid adjustments to the amount of fuel injected into each cylinder, aiming to keep the air-fuel ratio at the optimal stoichiometric point (or a slightly different target for emissions control or performance).
• Fuel Trim Adjustments: The ECU has short-term and long-term fuel trims. The A/F sensor data is the primary input for these trims. If the sensor consistently reads lean, the ECU will add more fuel (positive fuel trim). If it reads rich, it will reduce fuel (negative fuel trim).
• Catalytic Converter Efficiency Monitoring: While the primary job is fuel control, the ECU also uses the A/F sensor data, along with a downstream O2 sensor (Sensor 2), to monitor the efficiency of the catalytic converter.

The output is measured as a current, typically in milliamps (mA). A common way to represent the A/F ratio is using the lambda (λ) value, where λ=1 is stoichiometric. The ECU will have a lookup table or algorithm that translates the sensor’s current output into a lambda value or a specific air-fuel ratio. For example, a rich mixture might correspond to a lambda of less than 1 (e.g., 0.8), and a lean mixture to a lambda greater than 1 (e.g., 1.2).

The ECU’s sophisticated programming then uses this precise data to fine-tune the engine’s performance and emissions.

Diagnostic Scenarios and Common Issues: A/f Sensor 1 Bank 1

Alright, so we’ve sorted out what this A/F Sensor 1 Bank 1 gizmo actually is. Now, let’s get down to the nitty-gritty: what happens when it goes pear-shaped? This section is all about spotting the signs, figuring out why it’s borked, and how to nail down the problem. It’s the bit where we go from knowing the theory to actually fixing the motor.When this sensor starts playing up, your motor’s gonna give you some proper signals.

Think of it like the car whispering (or sometimes shouting) that something’s not right under the bonnet. Ignoring these signs is a proper rookie mistake, so we’ll run through the most common tells.

Common Symptoms of a Malfunctioning A/F Sensor 1 Bank 1

When the A/F Sensor 1 Bank 1 isn’t doing its job, the engine management system (ECU) doesn’t get the right intel on the air-fuel mix. This throws the whole operation out of whack, leading to a bunch of noticeable problems.

• Check Engine Light Illuminated: This is the most obvious one. The ECU flags a fault and the dreaded check engine light pops up on the dashboard. It’s the car’s way of saying, “Oi, sort this out!”
• Rough Idling: The engine might sound a bit juddery or uneven when it’s just sitting there ticking over. It’s not running smoothly, like it’s got a bit of a cough.
• Poor Fuel Economy: If the sensor’s giving dodgy readings, the ECU might be dumping too much or too little fuel into the cylinders. Either way, you’ll be noticing your MPG tanking, which is a proper bummer.
• Hesitation or Stumbling During Acceleration: When you put your foot down, the car might feel a bit sluggish, like it’s struggling to get going, or it might even cut out for a split second.
• Increased Emissions: Because the air-fuel ratio is off, your car will likely be chucking out more nasty fumes. This can lead to failing emissions tests, which is a right pain.
• Engine Misfires: In more severe cases, the incorrect air-fuel mixture can cause the engine to misfire, leading to a noticeable stutter or loss of power.

Potential Causes for a Faulty A/F Sensor 1 Bank 1

It’s not always just the sensor itself that’s the culprit. Sometimes, other factors can mess with its readings or even damage it. Understanding these potential causes helps you get to the root of the problem.

Contamination

The delicate sensing element inside the A/F sensor can get fouled up, preventing it from accurately measuring the oxygen content in the exhaust. This is a common one, and it can be caused by a few things:

• Excessive Oil Consumption: If your engine is burning oil, that oil can get into the exhaust and coat the sensor.
• Rich Fuel Mixture: Running too rich for too long, perhaps due to a leaking injector or faulty fuel pressure regulator, can leave carbon deposits on the sensor.
• Coolant Leaks: Antifreeze is a killer for these sensors. If coolant gets into the combustion chamber and then into the exhaust, it’s game over for the sensor.
• Fuel Additives and Contaminants: Some dodgy fuel or aggressive additives can leave residue that fouls the sensor.

Physical Damage

Sometimes, it’s just bad luck or poor installation that causes physical harm.

• Exhaust Leaks: A leak before the sensor can draw in fresh air, skewing the readings. It can also cause the sensor to overheat if the leak is severe.
• Impact Damage: If the exhaust system has taken a knock, the sensor itself or its wiring could have been damaged.
• Corrosion: Over time, the harsh environment of the exhaust system can cause corrosion on the sensor’s electrical connections.

Diagnostic Trouble Codes (DTCs) Associated with A/F Sensor 1 Bank 1 Failures

When the car’s computer throws a wobbly, it usually logs a specific code. These codes are like secret messages from the ECU that point you in the right direction. For the A/F Sensor 1 Bank 1, you’ll often see codes starting with ‘P0130’ to ‘P0167’, but the most common ones relate directly to the sensor’s performance.Here are some of the usual suspects you’ll find when scanning for faults:

• P0130: O2 Sensor Circuit Malfunction (Bank 1 Sensor 1): This is a general code indicating a problem with the sensor’s electrical circuit.
• P0131: O2 Sensor Circuit Low Voltage (Bank 1 Sensor 1): The sensor is reporting a voltage that’s too low, suggesting it’s not detecting enough oxygen.
• P0132: O2 Sensor Circuit High Voltage (Bank 1 Sensor 1): The opposite of P0131; the sensor is reporting a voltage that’s too high, suggesting too much oxygen.
• P0133: O2 Sensor Circuit Slow Response (Bank 1 Sensor 1): The sensor isn’t reacting quickly enough to changes in the exhaust gas mixture. It’s like it’s lagging behind.
• P0134: O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1): The ECU isn’t getting any signal at all from the sensor. Dead as a dodo.

Comparison of A/F Sensor 1 Bank 1 Failure Modes with Other Exhaust Gas Sensors

It’s useful to know how the A/F sensor’s problems differ from other sensors in the exhaust system. While they all deal with exhaust gases, their functions and failure symptoms can vary.

A/F Sensor 1 Bank 1 vs. Conventional Lambda (O2) Sensor

A conventional Lambda (O2) sensor, typically found on older vehicles, mainly tells the ECU if the mixture is rich or lean. It operates in a narrower voltage range.

• A/F Sensor: Provides a much more precise, wideband signal, indicating the exact air-fuel ratio. Its failure often results in more complex drivability issues and can be more sensitive to contamination.
• Lambda Sensor: Failures might result in less precise mixture control, leading to less drastic fuel economy drops or performance issues compared to a wideband A/F sensor failure. However, a faulty Lambda sensor can still cause check engine lights and emissions problems.

A/F Sensor 1 Bank 1 vs. Exhaust Gas Temperature (EGT) Sensor

EGT sensors measure the temperature of the exhaust gases, crucial for systems like turbochargers or diesel particulate filters.

• A/F Sensor: Focuses on the composition of the exhaust gases (air-fuel ratio).
• EGT Sensor: Focuses on the thermal output. A faulty EGT sensor might trigger warnings related to overheating or catalyst efficiency, but won’t directly impact the air-fuel mixture calculations like an A/F sensor.

Typical Diagnostic Procedures for Confirming an A/F Sensor 1 Bank 1 Issue

So, you’ve got a hunch the A/F sensor is on the fritz. Here’s a rundown of how you’d go about confirming it, moving from the simplest checks to more in-depth investigations.Before you dive in, make sure you’ve got a decent OBD-II scanner. It’s your best mate for this sort of job.

1. Scan for Diagnostic Trouble Codes (DTCs): This is always step one. Read the codes stored in the ECU. This will give you a strong indication of which sensor is reporting a fault.
2. Check Live Data Stream: With your OBD-II scanner, monitor the live data from the A/F sensor. You’re looking for its voltage or air-fuel ratio readings.
   • Observe the sensor’s response when the engine is running and at operating temperature. A healthy sensor should show fluctuating readings that correspond to changes in engine load or throttle input.
   • If the readings are stuck at a certain value, or fluctuate erratically and don’t respond to engine changes, it’s a major red flag.
3. Inspect the Sensor and Wiring: Physically check the sensor and its connector.
   • Look for any signs of damage, corrosion, or loose connections on the sensor itself and the wiring harness leading to it.
   • Check for exhaust leaks around the sensor’s mounting point.
4. Perform Sensor Heater Circuit Test: Most modern A/F sensors have a built-in heater to bring them up to operating temperature quickly. The ECU monitors this heater circuit. A fault code related to the heater circuit indicates a problem with the heater element or its wiring.
5. Check for Exhaust Leaks: As mentioned, exhaust leaks before the sensor can contaminate its readings. You can often detect these by listening for hissing sounds or by using a smoke machine.
6. Test Sensor Response with a Known Good Signal (Advanced): For more advanced diagnostics, a technician might use specialized equipment to simulate signals to the ECU or inject known gases to test the sensor’s response. This is less common for DIY repairs but is used by professionals.
7. Compare with Bank 2 Sensor (if applicable): If your vehicle has two banks (e.g., V6 or V8 engines), you can compare the live data from Bank 1 Sensor 1 with Bank 2 Sensor 1. If one sensor is behaving erratically while the other is stable, it strongly suggests a problem with the erratic sensor.

Repair and Replacement Procedures

Right then, so you’ve sussed out that your A/F sensor 1 bank 1 is playing up, and now it’s time to get it sorted. This section is all about the nitty-gritty of swapping that dodgy sensor out for a fresh one. It’s not rocket science, but you gotta do it right, yeah? Get it wrong and you’ll be back to square one, or worse.Swapping out an A/F sensor 1 bank 1 is pretty straightforward, but you need to be clued up on the process to avoid any faff.

We’ll walk through the general steps, give you the lowdown on tools, and share some top tips to make sure the job’s done properly.

General Steps for A/F Sensor 1 Bank 1 Replacement

Getting this sensor swapped is a mission you can totally tackle if you’re a bit handy. Here’s the general game plan:

1. Locate the Sensor: First off, you need to find the darn thing. It’s usually tucked away near the exhaust manifold on the side of the engine that corresponds to bank 1. Your car’s manual or a quick online search for your specific model will be your best mate here.
2. Access the Sensor: Depending on your motor, you might need to jack it up and get underneath, or it might be accessible from the top. Sometimes, you might need to remove other bits and bobs to get a clear run at it.
3. Disconnect the Electrical Connector: This is a crucial bit. You don’t want to be yanking on wires like a madman.
4. Remove the Old Sensor: Once unplugged, you’ll need a special socket to get it unscrewed. These sensors are often in tight spots and can be a bit seized up with heat and grime.
5. Prepare the New Sensor: Before you screw in the new one, give the threads a little smear of anti-seize compound. This stops it from seizing up again in the future, making your life easier next time.
6. Install the New Sensor: Screw the new sensor in by hand first to avoid cross-threading, then use your socket to tighten it up. Don’t go mental with the torque; just snug it up properly.
7. Reconnect the Electrical Connector: Click it back in until it’s secure.
8. Clear ECU Codes: After everything’s reconnected, you’ll need to clear any fault codes from the engine control unit (ECU).
9. Perform System Relearn: Finally, you’ll need to get the ECU to recognise the new sensor.

Safely Disconnecting and Reconnecting Electrical Connectors

Messing with electrical connectors is where things can go pear-shaped if you’re not careful. These things are usually designed to clip in securely, and there’s often a little tab or lever you need to press.

• Identify the Connector: It’ll be a plastic plug with wires going into it, attached to the sensor.
• Press the Release Tab: Most connectors have a small plastic tab that needs to be depressed or squeezed to release the locking mechanism. Have a good look at it to see how it works before you start fiddling.
• Gentle Wiggling: Once the tab is pressed, gently wiggle the connector to pull it apart. Never yank on the wires themselves; you could pull them right out of the connector housing.
• Visual Inspection: Before reconnecting, have a gander at both the male and female parts of the connector. Make sure there’s no corrosion, dirt, or damaged pins. Give them a clean with some electrical contact cleaner if needed.
• Align and Push: Line up the connector correctly – they’re usually keyed so they only fit one way. Push them together firmly until you hear or feel a click, indicating the locking tab has engaged.

Never force a connector. If it doesn’t come apart or go together easily, check for obstructions or that you’re aligning it correctly.

Tools and Equipment Required

You won’t need a whole toolbox full of fancy gear for this job, but a few specific bits will make it a doddle.

• A/F Sensor Socket: This is a special deep socket with a cutout for the sensor wire. Standard sockets won’t work, and you’ll likely damage the wire.
• Ratchet Wrench: To use with the sensor socket.
• Torque Wrench: While not always strictly necessary for a DIY job, it’s best practice to use one to tighten the new sensor to the manufacturer’s specified torque. Overtightening can damage the threads in the exhaust manifold, and undertightening can lead to exhaust leaks.
• Penetrating Oil: For those stubborn, seized sensors. Spray it on and give it some time to work its magic.
• Wire Brush: To clean up the threads in the exhaust manifold if they’re a bit grubby.
• Safety Glasses and Gloves: Always important when working on cars, especially with exhaust components.
• Jack and Axle Stands: If you need to get underneath the vehicle.

Best Practices for Proper Installation and Sealing

Getting the new sensor seated correctly is mega important for it to do its job and not cause any leaks.

• Clean the Threads: Before screwing in the new sensor, clean the threads in the exhaust manifold with a wire brush. This ensures it goes in smoothly and seals properly.
• Apply Anti-Seize: A thin layer of high-temperature anti-seize compound on the threads of the new sensor prevents it from seizing in the future. Be careful not to get any on the sensor element itself.
• Hand-Tighten First: Always start screwing the sensor in by hand. This helps prevent cross-threading, which can be a nightmare to fix.
• Torque to Spec: Once hand-tight, use a torque wrench to tighten the sensor to the manufacturer’s recommended torque setting. This ensures a good seal without damaging the threads.
• Ensure Connector is Secure: Double-check that the electrical connector is fully plugged in and locked.

Importance of Clearing ECU Codes and System Relearn

So, you’ve done the swap, but the job isn’t quite finished. The ECU has been flagging a fault, and it needs to know that the problem’s been sorted.

Clearing the ECU codes is vital because the car’s computer will still think there’s an issue if you don’t reset it. This can lead to the check engine light staying on, or even the car going into a ‘limp mode’ where performance is restricted. You can usually clear these codes with an OBD-II scanner. Some cars might have a battery disconnect procedure, but an OBD-II scanner is the most reliable way.

The system relearn, or ‘initialisation’, is where the ECU learns the characteristics of the new sensor. It’s like introducing a new team member and getting them up to speed. This process allows the ECU to accurately interpret the signals from the new A/F sensor and adjust the fuel mixture accordingly. This often involves a specific driving cycle, where you drive the car under various conditions (e.g., steady cruising, acceleration, idling) to allow the ECU to gather data.

Your car’s manual or an online forum for your specific vehicle will often detail the exact relearn procedure required.

Failing to clear codes and perform a relearn can mean your new sensor isn’t used correctly, and you might still experience poor fuel economy or performance issues.

Impact on Engine Performance and Emissions

Right then, let’s get stuck into how a dodgy A/F sensor 1 bank 1 can seriously mess with your motor and the planet. It’s not just about a bit of a rough idle, this thing can go from a minor inconvenience to a proper environmental nightmare if you leave it unchecked. Think of it as the engine’s taste buds, and if they’re off, the whole meal’s gonna be a disaster.This sensor is basically the gatekeeper for your engine’s fuel-air mix, which is dead crucial for everything from how much juice you’re chucking down your gullet to how much gunk you’re spewing out the back.

When it’s playing up, the engine’s flying blind, and that’s when the real trouble starts.

Fuel Economy Takes a Hit

When the A/F sensor 1 bank 1 isn’t sending the right signals, the engine management system (ECU) can get seriously confused about how much fuel to inject. If the sensor tells the ECU there’s too much air, the ECU will compensate by chucking in more fuel, thinking it’s lean. This leads to a richer-than-necessary mixture, which is a total waste of petrol and hits your wallet hard.

It’s like having a leaky tap but instead of water, it’s your hard-earned cash dribbling away. You’ll notice your MPG dropping quicker than a stone in a well.

The Air-Fuel Mixture Connection

The A/F sensor 1 bank 1’s main gig is to measure the amount of oxygen in the exhaust gases. This reading is then used to determine if the air-fuel mixture being burned in the engine cylinders is rich (too much fuel, not enough air) or lean (too much air, not enough fuel). A perfect mixture, often referred to as stoichiometric, is about 14.7 parts air to 1 part fuel.

The sensor’s job is to constantly monitor and report back on deviations from this ideal ratio.

The A/F sensor is the engine’s breathalyzer, telling the ECU exactly what’s coming out of the combustion chamber so it can adjust what’s going in.

Environmental Consequences of Emissions

When the air-fuel mixture is out of whack due to a faulty A/F sensor, the exhaust emissions can become seriously harmful. If the mixture is too rich, you’ll get increased levels of carbon monoxide (CO) and unburned hydrocarbons (HC) in the exhaust. If it’s too lean, you might see higher levels of nitrogen oxides (NOx). These are all major contributors to air pollution and can have a detrimental effect on the environment.

Think smog, acid rain, and all that jazz. It’s not just your car; it’s the air we all breathe.

ECU Adjustments for Optimal Combustion

The ECU uses the real-time data from the A/F sensor 1 bank 1 as part of its closed-loop feedback system. Based on the sensor’s readings, the ECU makes micro-adjustments to the fuel injector pulse width. If the sensor indicates a lean condition, the ECU will increase the amount of fuel injected. Conversely, if it detects a rich condition, it will reduce the fuel.

This constant fine-tuning aims to maintain the ideal air-fuel ratio for optimal combustion, power, and efficiency. It’s a clever bit of tech, but it relies on the sensor doing its job properly.

Catalytic Converter Efficiency, A/f sensor 1 bank 1

The catalytic converter is a vital part of your car’s emissions control system, working to convert harmful pollutants into less harmful substances. It functions most effectively when the air-fuel mixture is close to stoichiometric. A faulty A/F sensor 1 bank 1 can lead to an improper air-fuel ratio entering the catalytic converter. If the mixture is consistently too rich or too lean, the catalytic converter’s efficiency will be significantly reduced, meaning it won’t be able to do its job of cleaning up the exhaust effectively.

This can lead to the converter failing prematurely and, of course, more polluting fumes being released.

Advanced Concepts and Related Systems

Right then, so we’ve hammered home the basics of the A/F Sensor 1 Bank 1. Now, let’s get proper stuck into some of the more gnarly bits, looking at how it plays with other sensors and the brains of the operation, the ECU. It’s not just a standalone gizmo, see; it’s part of a bigger, more complex system that keeps your motor running sweet.We’ll be diving deep into how different types of sensors work, how the ECU uses the info it gets, and even some unexpected ways your exhaust can mess with the readings.

It’s all about understanding the full picture, innit?

Wideband A/F Sensors vs. Narrowband Sensors

Alright, so you’ve got two main types of air-fuel ratio sensors doing their thing, and they’re not exactly twins. The old-school narrowband ones are a bit basic, telling the ECU if the mix is rich or lean, but not much else. Wideband sensors, on the other hand, are proper pros. They give a much more detailed, linear reading across a wider range of air-fuel ratios, which is a game-changer for precision.The key difference is their output signal.

Narrowband sensors have a sharp, almost binary switch between rich and lean signals, making them good for just keeping the engine within a specific, narrow band for emissions control. Wideband sensors, however, produce a variable voltage or current output that directly correlates to the precise air-fuel ratio. This allows the ECU to make much finer adjustments, especially for performance tuning or when the engine is operating outside of optimal stoichiometric conditions.

Think of it like a dimmer switch versus a simple on/off switch for your lights.

A/F Sensor 1 Bank 1 and Mass Airflow (MAF) Sensor Interaction

These two sensors are like best mates, constantly feeding each other info to get the fuel mix spot on. The MAF sensor tells the ECU how much air is actually going into the engine, and the A/F sensor then tells it how much fuel is needed to match that air. It’s a constant back-and-forth.The MAF sensor, usually located in the intake tract after the air filter, measures the density and volume of air entering the engine.

The ECU uses this data to calculate a baseline fuel injection pulse width. The A/F sensor then acts as a crucial feedback loop. If the A/F sensor detects that the actual air-fuel mixture is not matching the ECU’s calculation (e.g., it’s too rich or too lean), it sends a signal back to the ECU. The ECU then adjusts the fuel injector pulse width accordingly to correct the mixture.

This dynamic interaction ensures that the engine runs efficiently and cleanly under varying conditions, from idling to full throttle.

ECU Fuel Injector Control Using Sensor Feedback

The ECU is the boss, and the A/F sensor is one of its most trusted advisors. Based on the readings from the A/F sensor (and other sensors, mind you), the ECU tweaks how long the fuel injectors stay open. This ensures the perfect amount of fuel is sprayed in, making sure the engine doesn’t guzzle too much juice or run on fumes.The ECU employs sophisticated algorithms to process the feedback from the A/F sensor.

When the sensor indicates a lean condition (too much air for the fuel), the ECU will increase the duration the fuel injectors are open, injecting more fuel. Conversely, if a rich condition is detected (too much fuel for the air), the ECU will shorten the injector pulse width. This closed-loop control system is essential for maintaining the target air-fuel ratio, typically around 14.7:1 for gasoline engines under normal operating conditions, to optimise combustion, minimise emissions, and maximise fuel economy.

Conceptual Data Flow Diagram

Imagine this: The A/F Sensor 1 Bank 1 is like a little reporter in the exhaust pipe, constantly sniffing the fumes. It sends its findings, like a detailed report, to the ECU. The ECU then takes this report, looks at it with all the other intel it’s got, and makes a decision. It then tells the fuel injectors exactly what to do – open a bit more, or a bit less.

It’s a slick operation.Here’s a breakdown of the data flow:

• A/F Sensor 1 Bank 1: Measures the oxygen content in the exhaust gases and converts this into an electrical signal representing the air-fuel ratio.
• ECU (Engine Control Unit): Receives the signal from the A/F sensor.
• ECU Processing: Compares the sensor’s reading to the target air-fuel ratio (e.g., stoichiometric).
• Fuel Injection Adjustment: Based on the comparison, the ECU calculates the necessary adjustment to the fuel injector pulse width.
• Fuel Injectors: Receive the updated command from the ECU and alter the amount of fuel injected into the cylinders.
• Engine Combustion: The adjusted fuel mixture leads to a change in combustion, which is then measured again by the A/F sensor, completing the feedback loop.

Exhaust Backpressure’s Influence on A/F Sensor Readings

This is a bit of a curveball, but your exhaust backpressure can actually mess with what the A/F sensor thinks it’s seeing. If there’s too much pressure building up, it can affect how the exhaust gases flow past the sensor, making its readings a bit wonky.High exhaust backpressure, often caused by a clogged catalytic converter or a restricted exhaust system, can lead to exhaust gases being held in the cylinders for longer.

This can create a situation where the sensor experiences a less representative sample of the actual combustion event. It might falsely indicate a richer mixture because the exhaust gases are not being expelled as efficiently. This can lead the ECU to incorrectly lean out the mixture, potentially causing performance issues or even engine damage. It’s like trying to get a clear reading of someone’s breath when they’re holding it in – the sample isn’t quite right.

Conclusive Thoughts

As we conclude our exploration, it’s clear that the A/F Sensor 1 Bank 1 is far more than just a simple component; it’s the conductor of the engine’s symphony, ensuring every note of the air-fuel mixture is played in perfect harmony. From its fundamental function to its intricate diagnostics and vital role in emissions control, understanding this sensor empowers us to appreciate the engineering brilliance that keeps our vehicles running efficiently and cleanly.

Embrace this knowledge, and drive with the confidence that comes from knowing your engine’s breath is in capable hands.

Clarifying Questions

What is the primary purpose of an A/F sensor?

The primary purpose of an A/F sensor is to measure the amount of oxygen in the exhaust gases, which directly indicates the air-fuel ratio being burned in the engine’s combustion chambers. This information is crucial for the engine control unit (ECU) to adjust the fuel injection for optimal performance and emissions.

How does ‘Sensor 1’ differ from ‘Sensor 2’ in the exhaust system?

Generally, ‘Sensor 1’ (upstream sensor) is located before the catalytic converter and directly monitors the raw exhaust gases for real-time air-fuel mixture adjustments. ‘Sensor 2’ (downstream sensor) is located after the catalytic converter and primarily monitors the efficiency of the catalytic converter’s emissions processing.

What does it mean if my check engine light comes on with a code related to A/F Sensor 1 Bank 1?

A check engine light with a code related to A/F Sensor 1 Bank 1 typically indicates a problem with that specific sensor. This could mean the sensor is not providing accurate readings, is failing, or is experiencing an electrical issue, necessitating further diagnosis and potential repair or replacement.

Can a dirty A/F Sensor 1 Bank 1 affect my engine’s power?

Yes, a dirty or contaminated A/F Sensor 1 Bank 1 can significantly affect engine power. If the sensor’s readings are inaccurate, the ECU may incorrectly adjust the air-fuel mixture, leading to a rich or lean condition that can cause sluggish acceleration, hesitation, and reduced overall engine performance.

Is it possible to clean an A/F Sensor 1 Bank 1 instead of replacing it?

While some minor contamination might be cleaned, it is generally not recommended or effective to clean a failing A/F Sensor 1 Bank 1. These sensors are sensitive precision instruments, and attempting to clean them can sometimes cause further damage. Replacement is usually the most reliable solution for a malfunctioning sensor.
